Added figure: turbulent kinetic energy contour over the flat plate.
Snapshot
- Course/Lab: AE 4699 CFD Lab
- Case type: External forced-convection over flat plate
- Solver: ANSYS Fluent
- Primary focus: Mesh/convergence discipline and laminar-vs-turbulent trend comparison

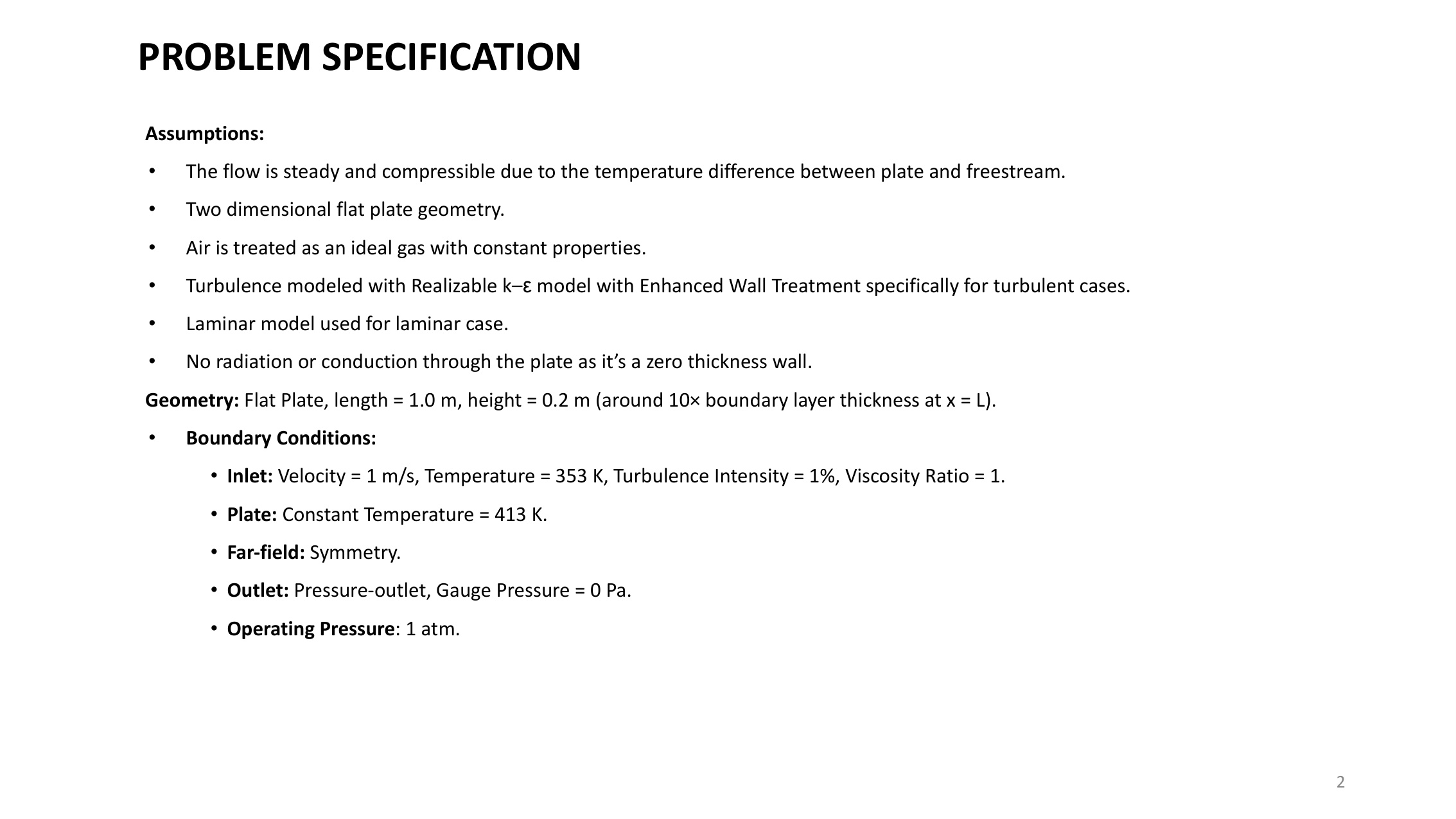

Mission and setup
- Build baseline laminar and turbulent flat-plate CFD cases.
- Evaluate expected behavior in:
- Skin-friction trend along the plate
- Thermal boundary-layer development
- Residual convergence quality
- Use trend-based interpretation to connect numerics to physics.
What I executed

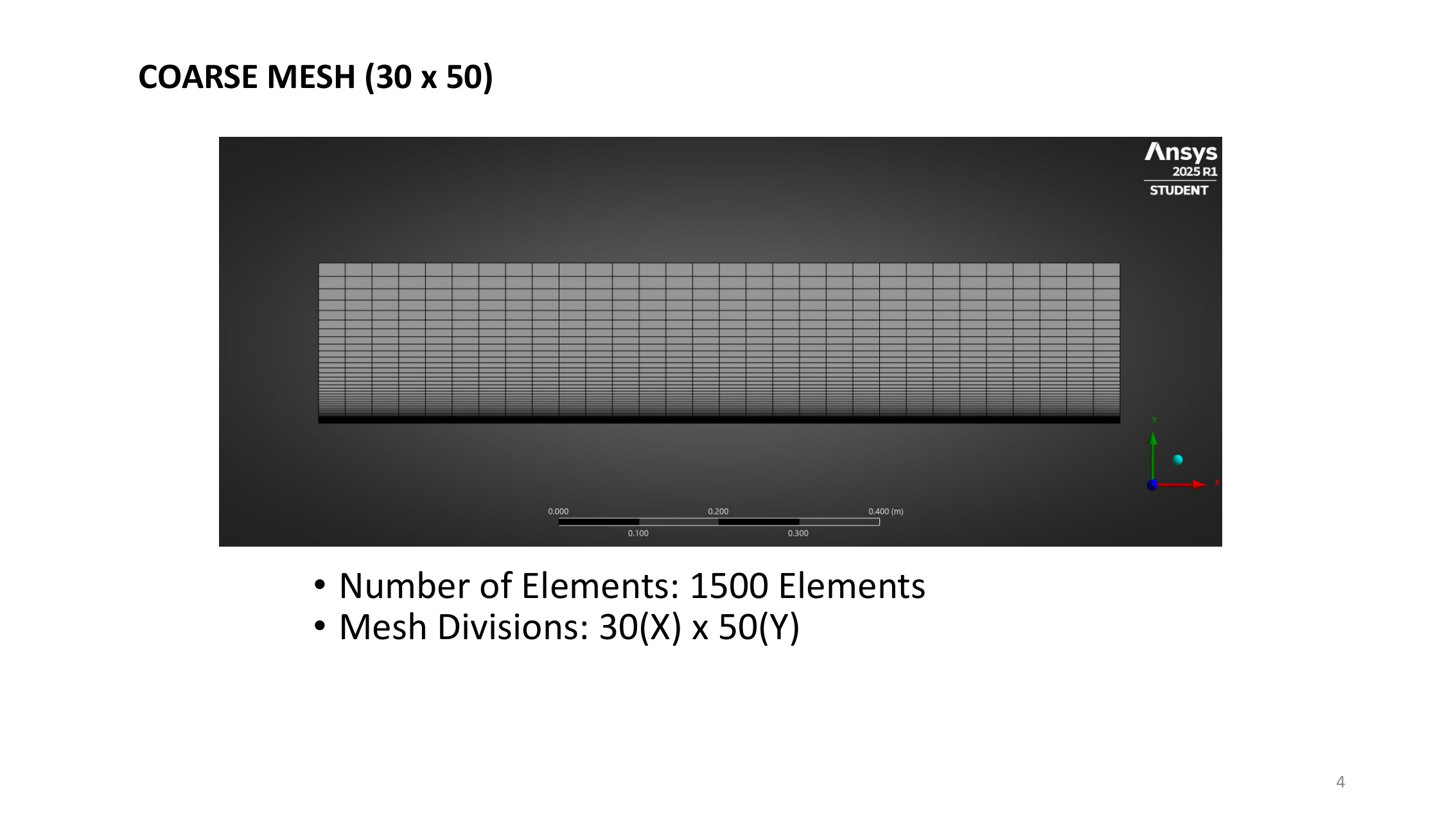

- Created case setup with matched geometry and comparable boundary conditions.
- Solved both laminar and turbulent configurations.

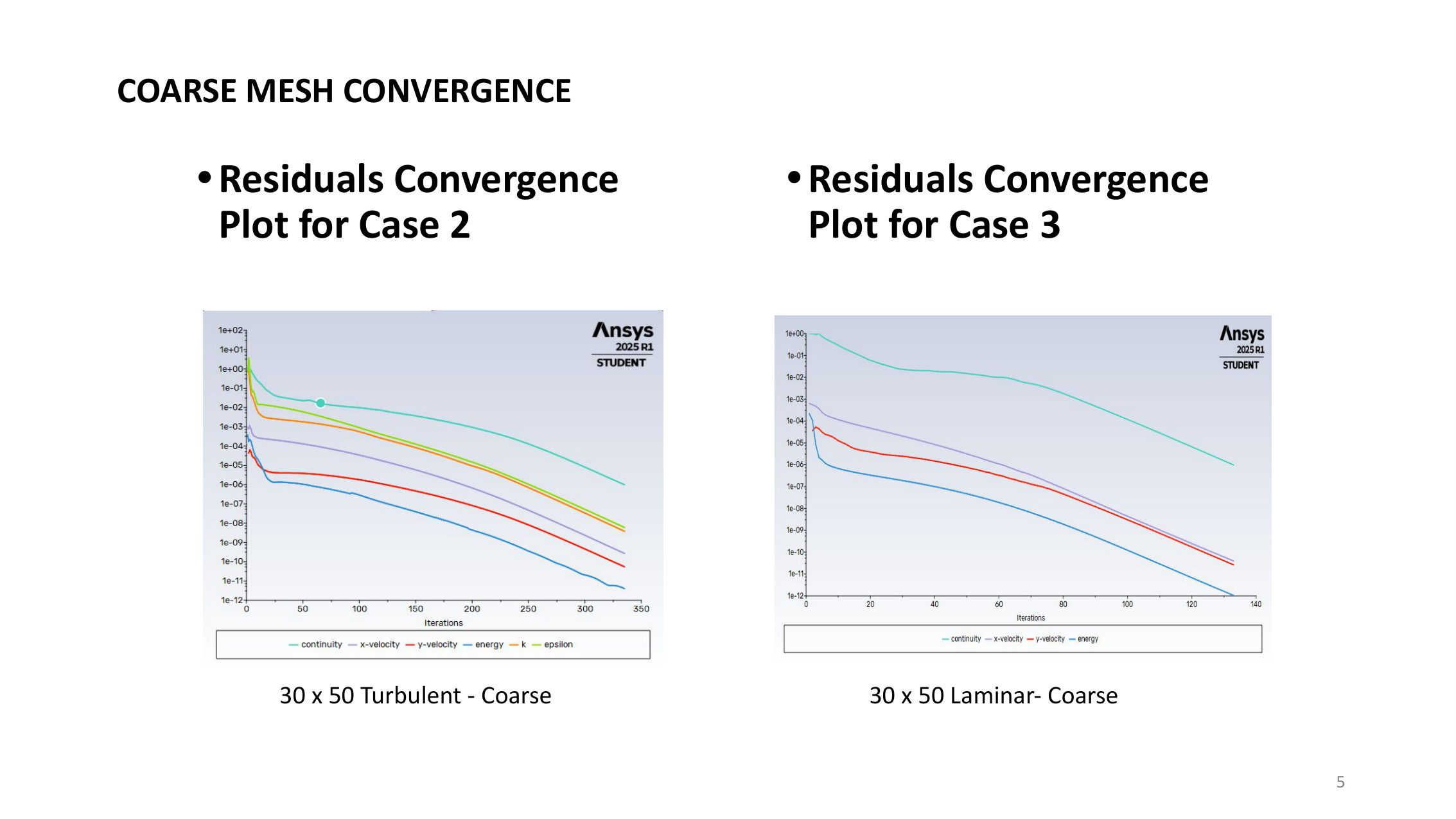

- Generated residual plots for convergence tracking.

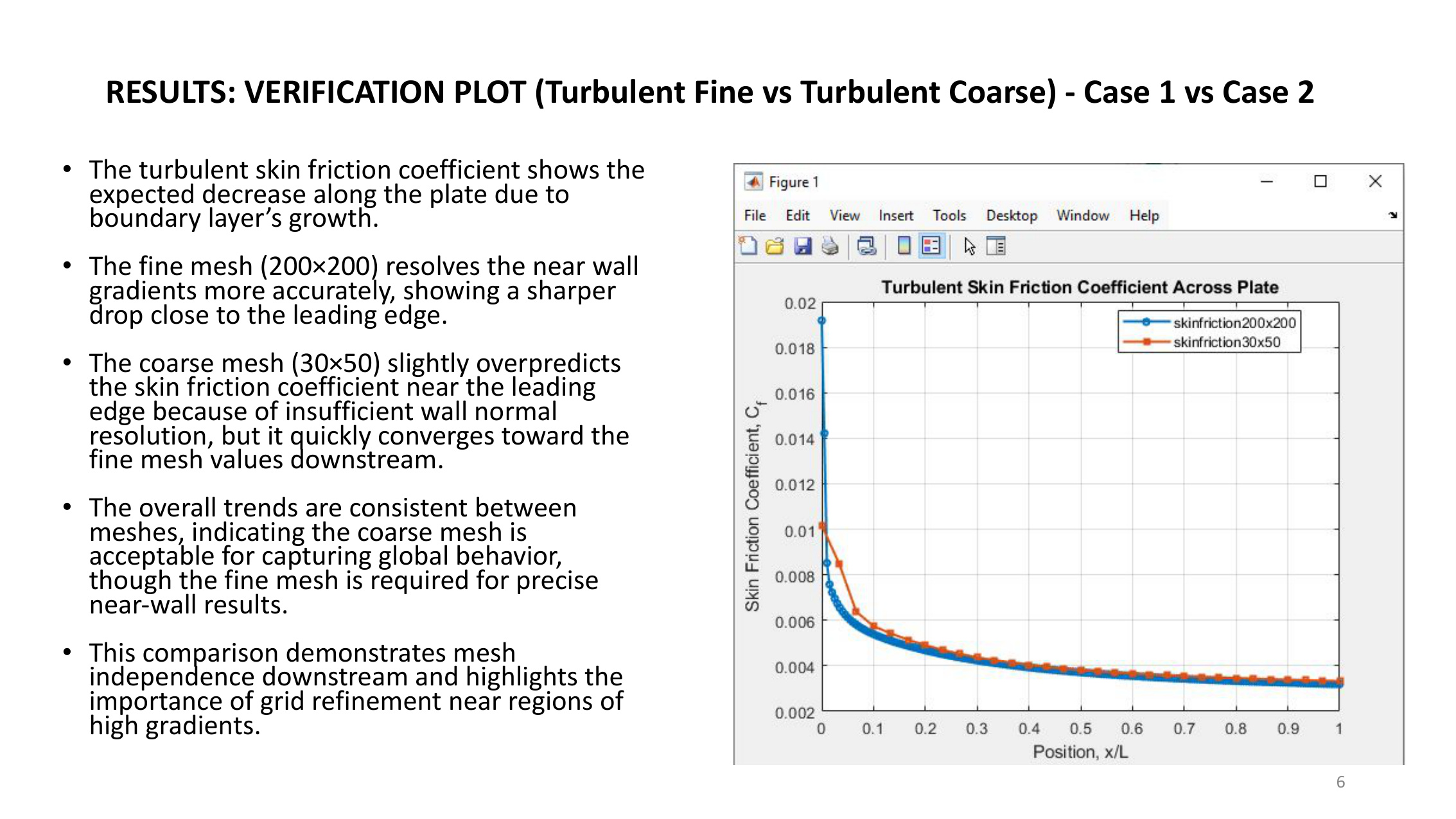

- Interpreted Cf and thermal-profile behavior against expected flat-plate theory.
Results and engineering takeaways
- Residual histories provide clear convergence evidence for compared cases.

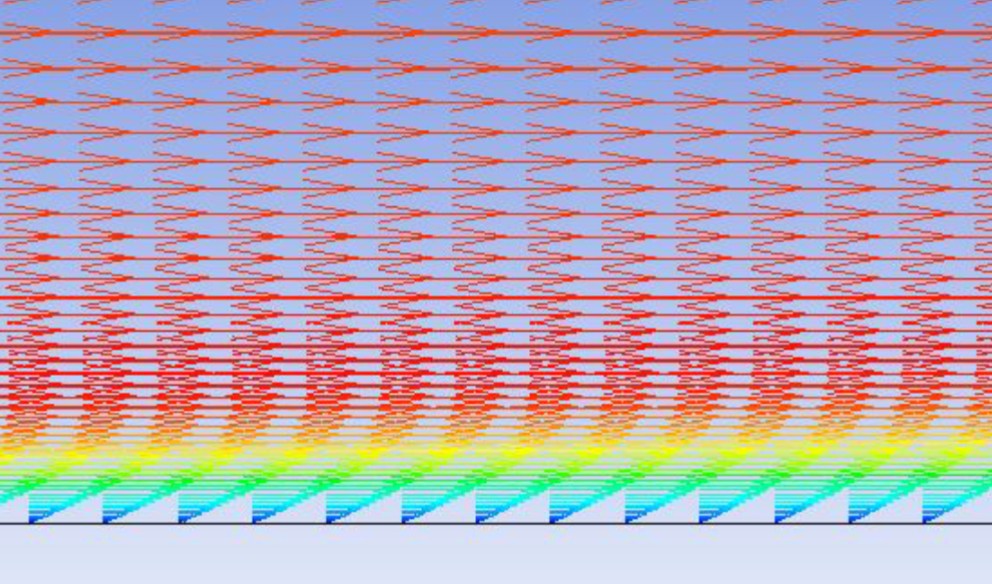

- Turbulent case shows expected stronger wall-shear and thermal transport behavior.
- Laminar case captures lower-gradient behavior with thinner near-wall transport effects.
- Assignment strengthened case-quality checks before final aerodynamic/thermal claims.

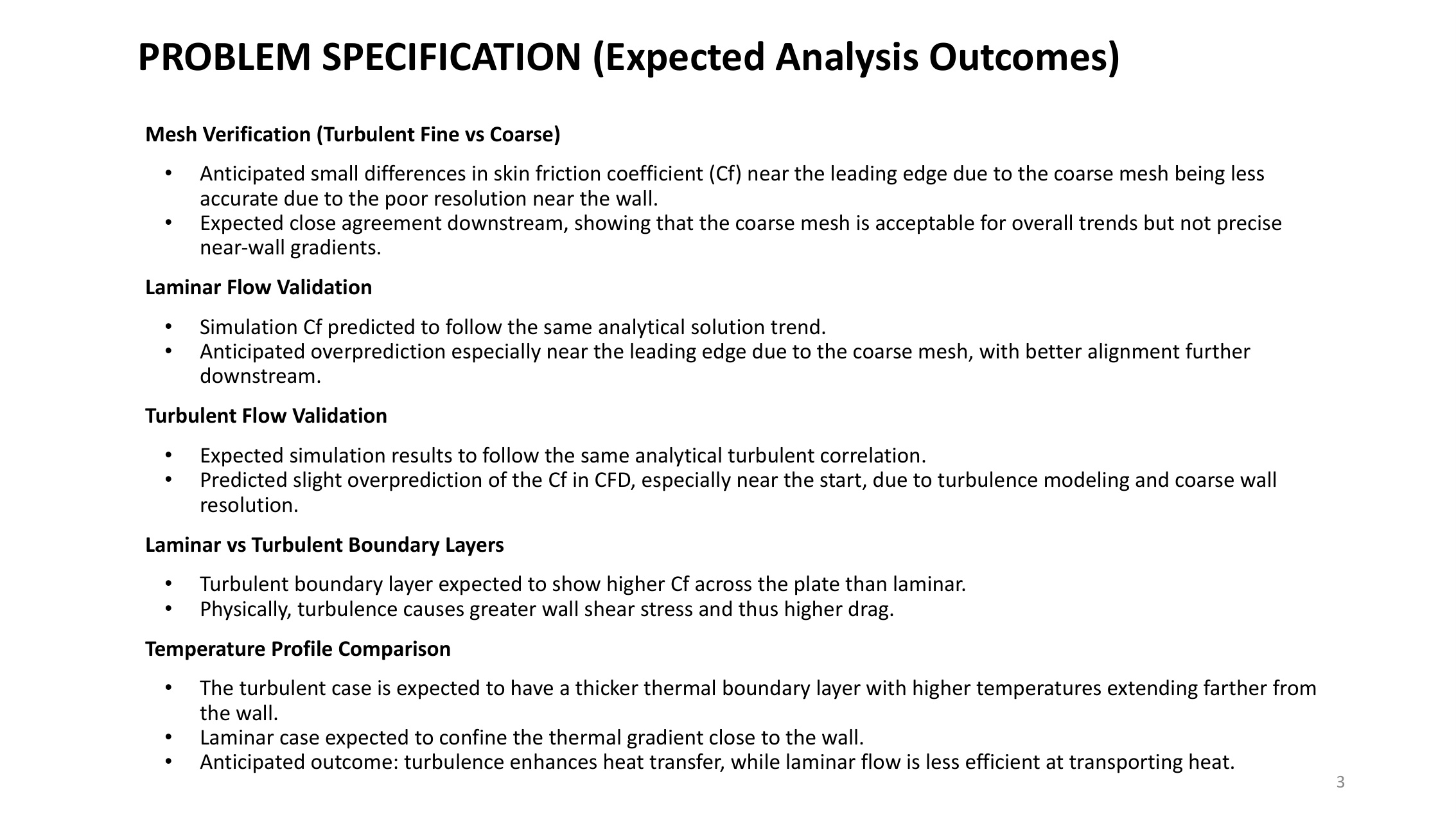

Validation and verification notes
- Compared simulation trends to expected analytical/correlation behavior.
- Used mesh and convergence interpretation as first-pass validation gates.
- Kept laminar/turbulent comparison structure consistent across outputs.
Reproducibility notes
- Setup-to-results workflow documented in a fixed assignment template.
- Case naming and slide ordering support quick reruns and side-by-side checks.
- Convergence and physics outputs reported together for traceable review.
