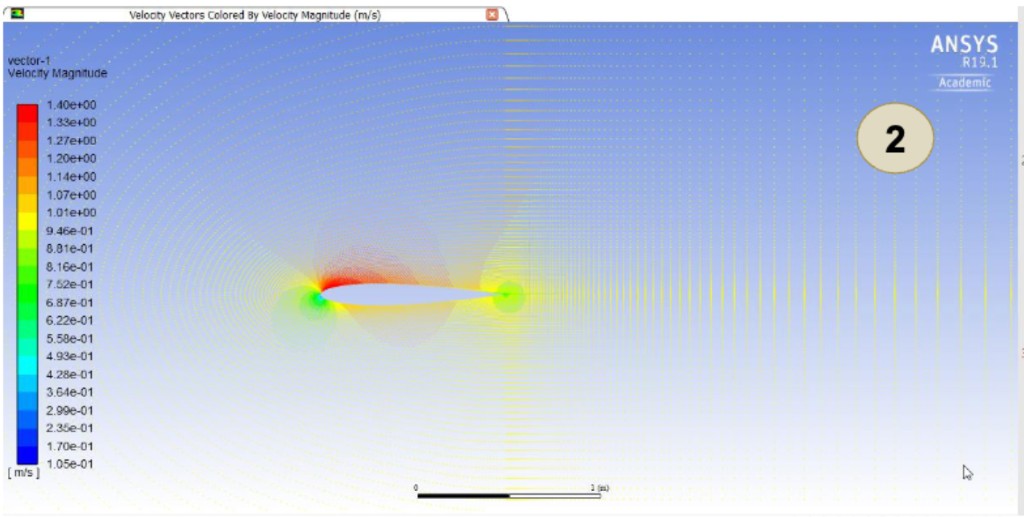

Added figure: velocity vectors colored by velocity magnitude around NACA 0012.
Snapshot
- Course/Lab: AE 4699 CFD Lab

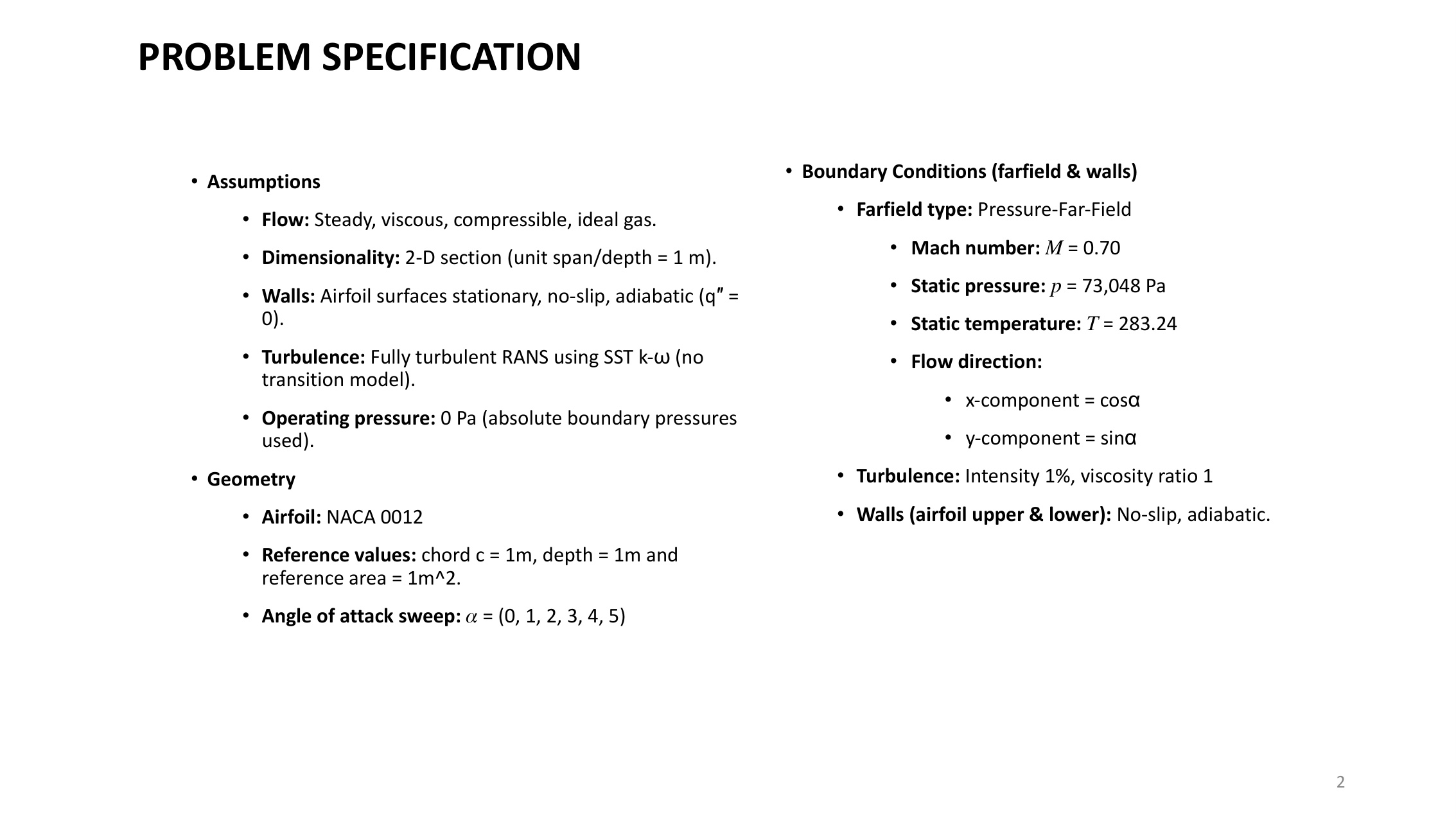

- Case type: Transonic external aerodynamics (NACA 0012)
- Solver: ANSYS Fluent (density-based setup)

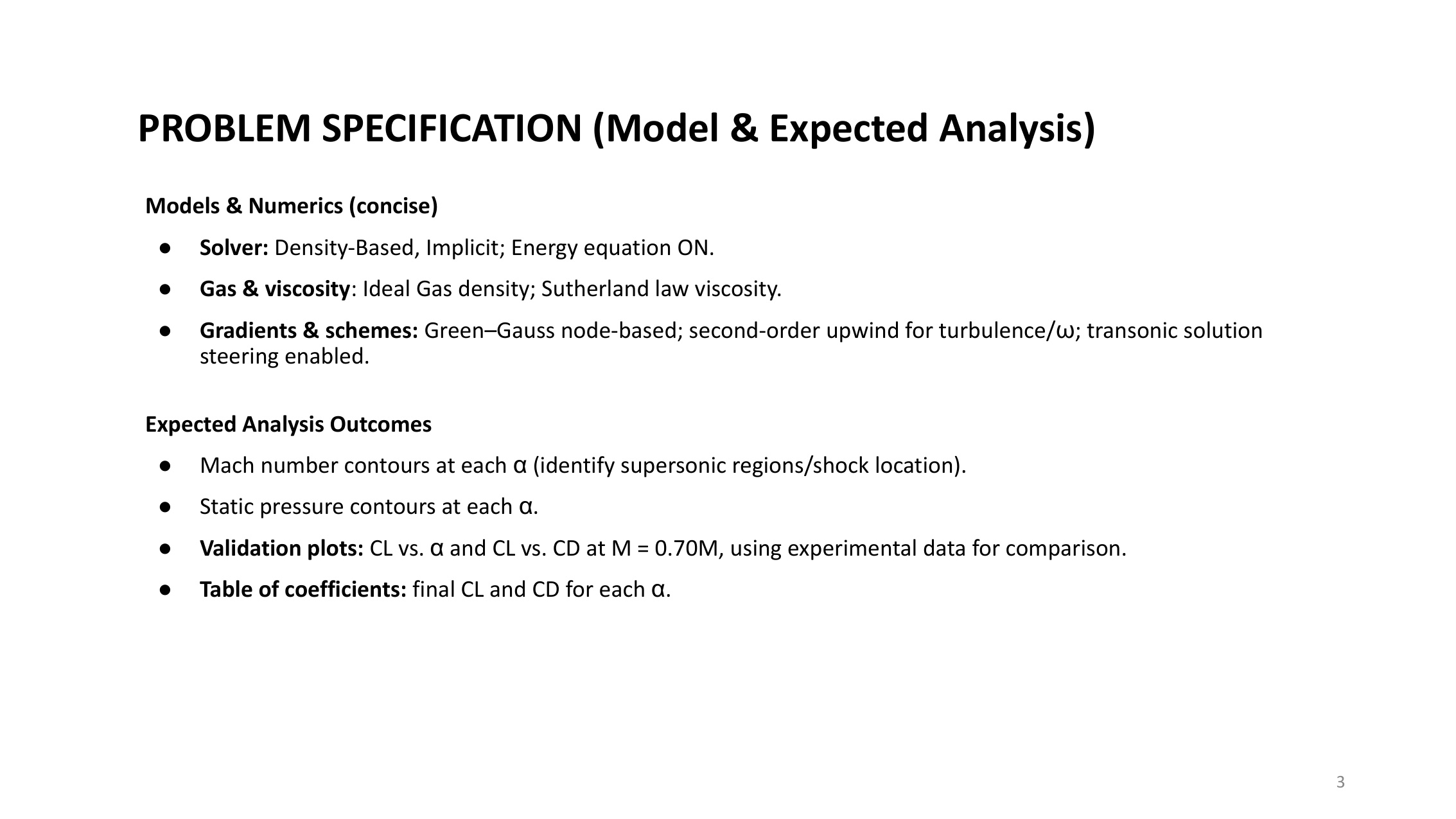

- Primary focus: Mach/pressure field behavior and coefficient validation structure
Mission and setup
- Build a transonic airfoil case with consistent numerical settings across alpha values.
- Capture core outputs for interpretation and comparison:
- Mach-number contours
- Static-pressure contours
- CL and CD trends vs angle of attack
- Keep assignment reporting aligned to validation expectations.
What I executed
- Configured density-based transonic setup with compressible gas modeling.

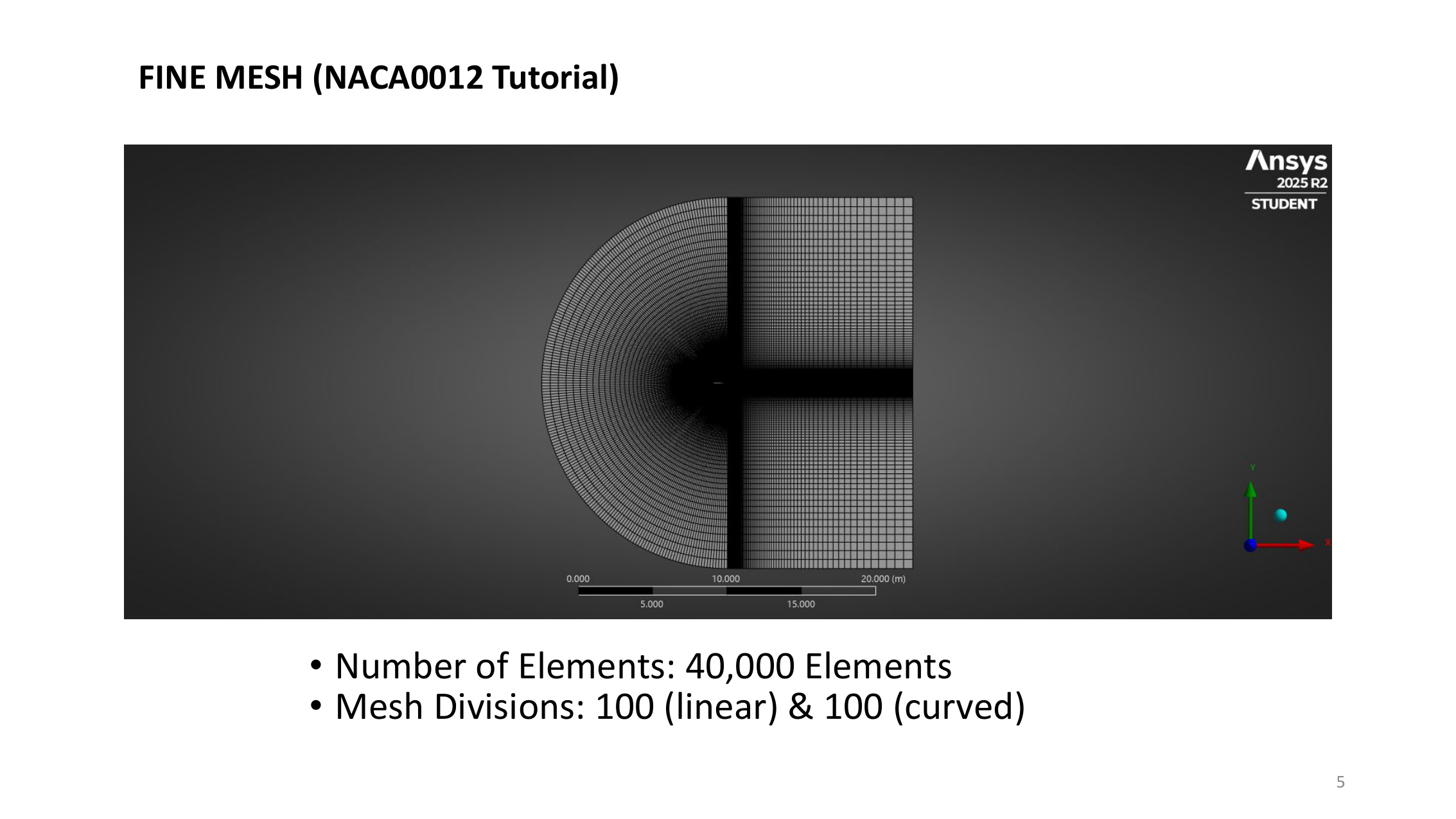

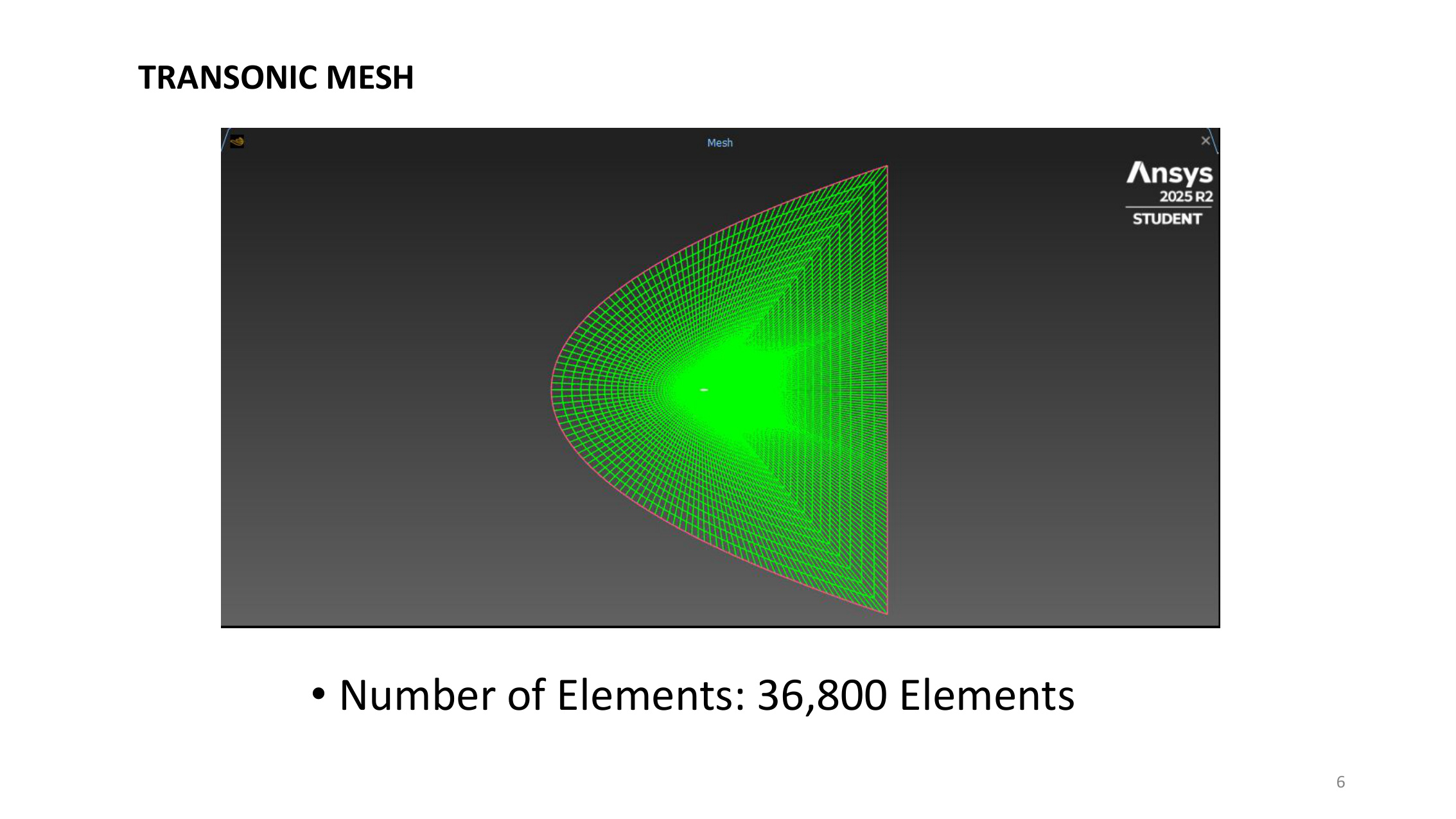

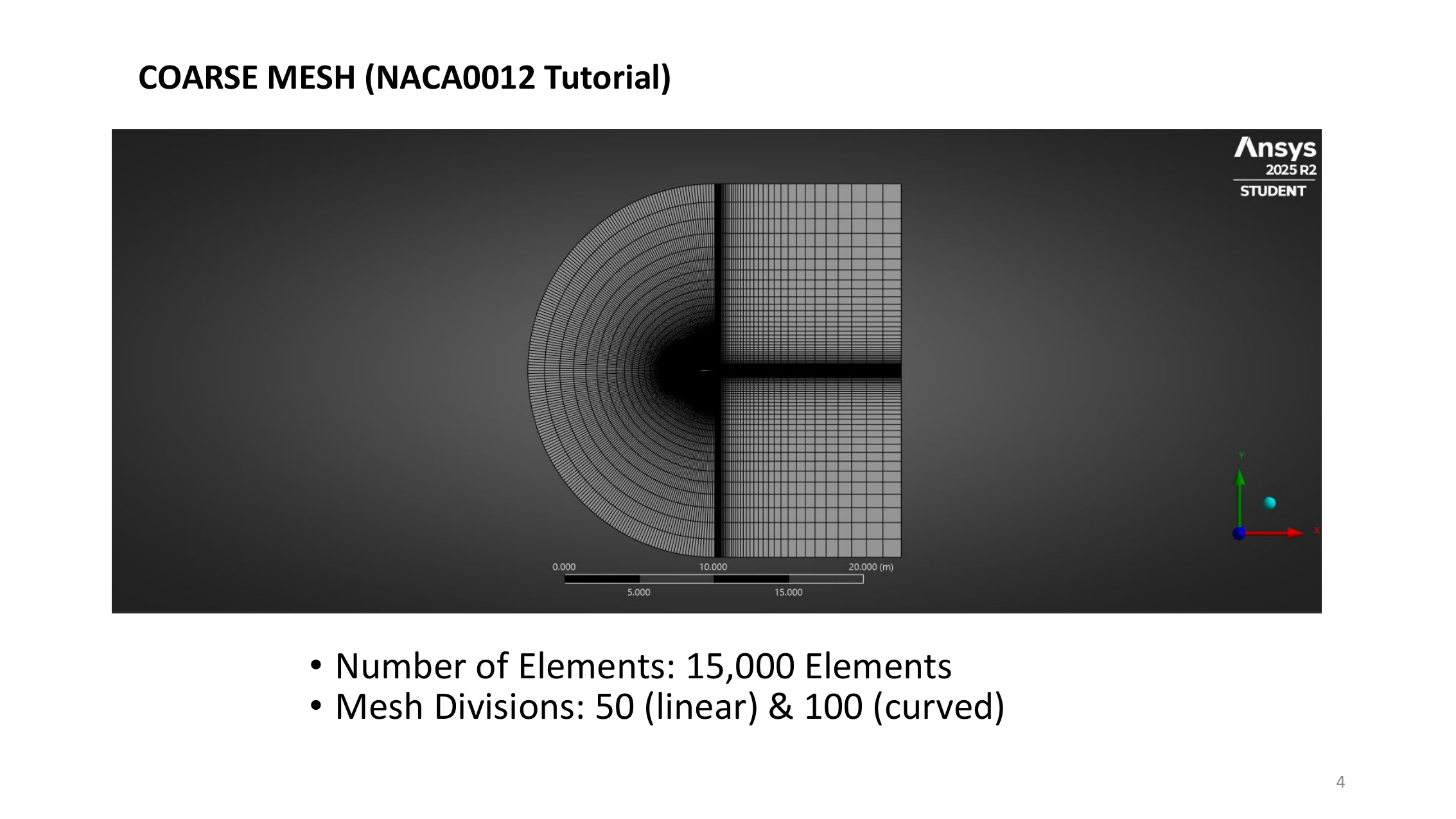

- Built and validated fine mesh baseline around NACA 0012 geometry.
- Ran angle-of-attack cases and extracted coefficient tables.
- Organized outputs into comparison plots for fast trend reading.
Results and engineering takeaways
- Transonic field behavior is captured with clear regime-sensitive contour changes.
- Fine mesh setup provides a stable baseline for coefficient trend comparison.
- CL/CD reporting structure supports direct validation against reference data.
- Assignment reinforced coefficient-first communication for aerodynamic decisions.
Validation and verification notes
- Used planned validation plots (CL-alpha and CL-CD) as acceptance criteria.
- Checked output consistency across all alpha cases in one standardized table.
- Maintained one numerical setup template to reduce case-to-case drift.
Reproducibility notes
- Mesh parameters and solver model choices documented in report slides.
- Post-processing sequence repeated identically for each angle-of-attack run.
- Slide deck structure reused for setup, convergence, and final metric reporting.
