3D pressure field and near-wing structures.
Snapshot
- Case type: 3D transonic external aerodynamics
- Geometry: ONERA M6 validation wing
- Objective: Reproduce expected transonic pressure behavior and compare contour trends to reference studies
- Learning path basis: Cornell-origin SimCafe tutorial pathway surfaced through Ansys Innovation content
Problem specification
| Parameter | Value |
|---|---|
| Mach number | 0.8395 |
| Inlet temperature | 460 degR |
| Wing rotation/incidence | 3.06 deg |
| Inlet Reynolds number | 11.72 million |
Setup approach
- Followed transonic wing workflow structure: geometry/mesh -> physics setup -> solution -> results evaluation.
- Focused on pressure and velocity-field interpretation around ONERA M6 under transonic conditions.
- Used consistent extraction views to make contour comparisons repeatable.
Results and interpretation

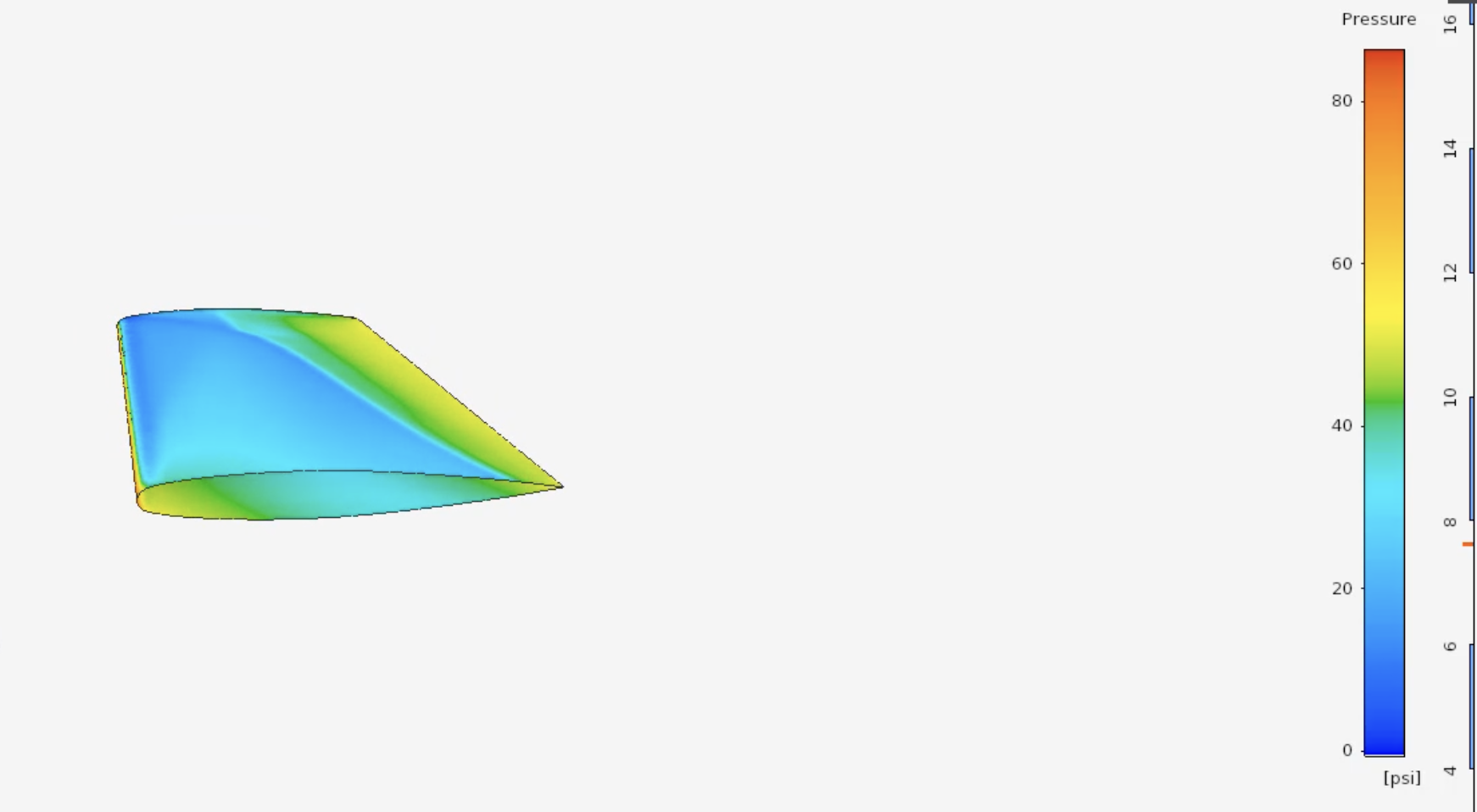

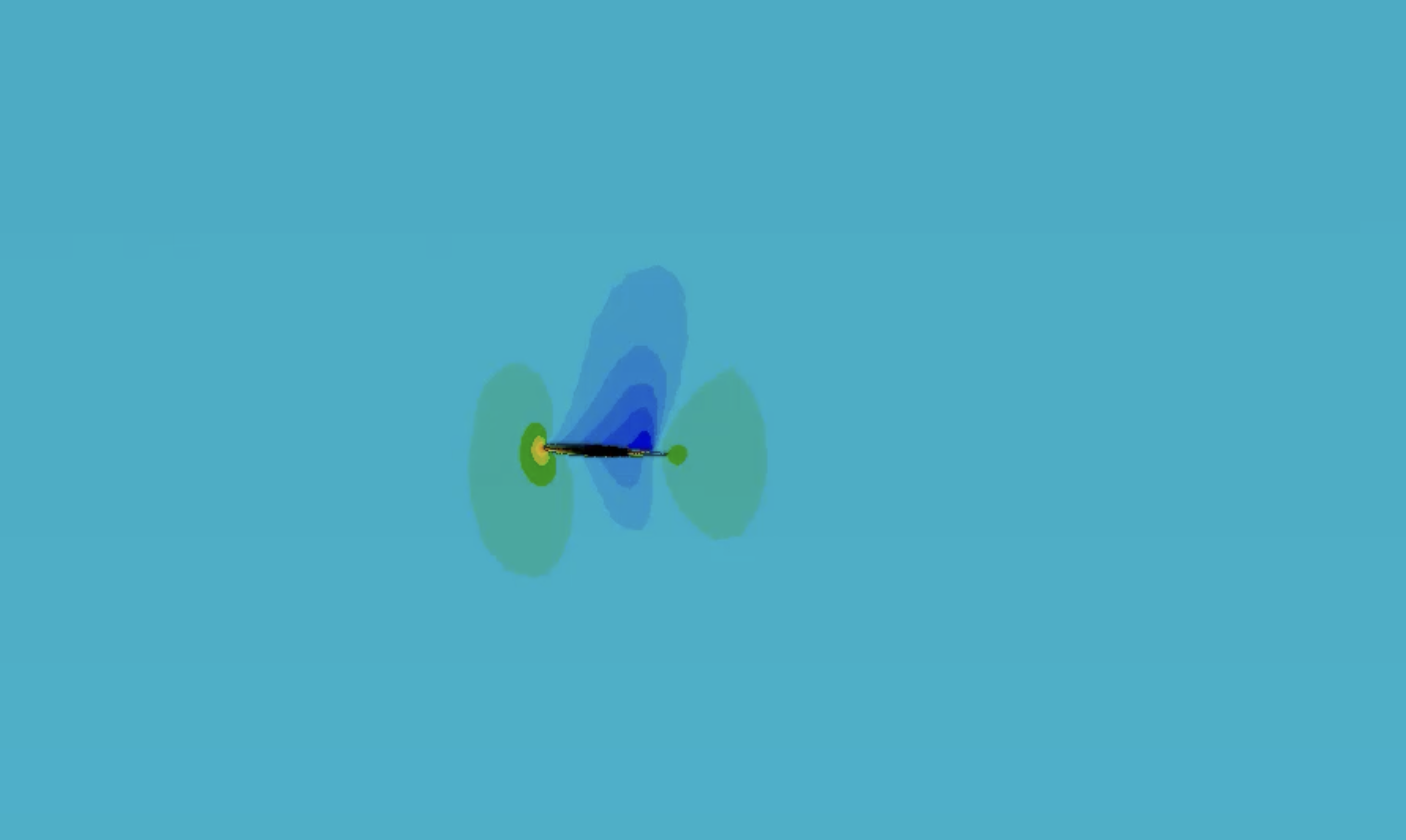

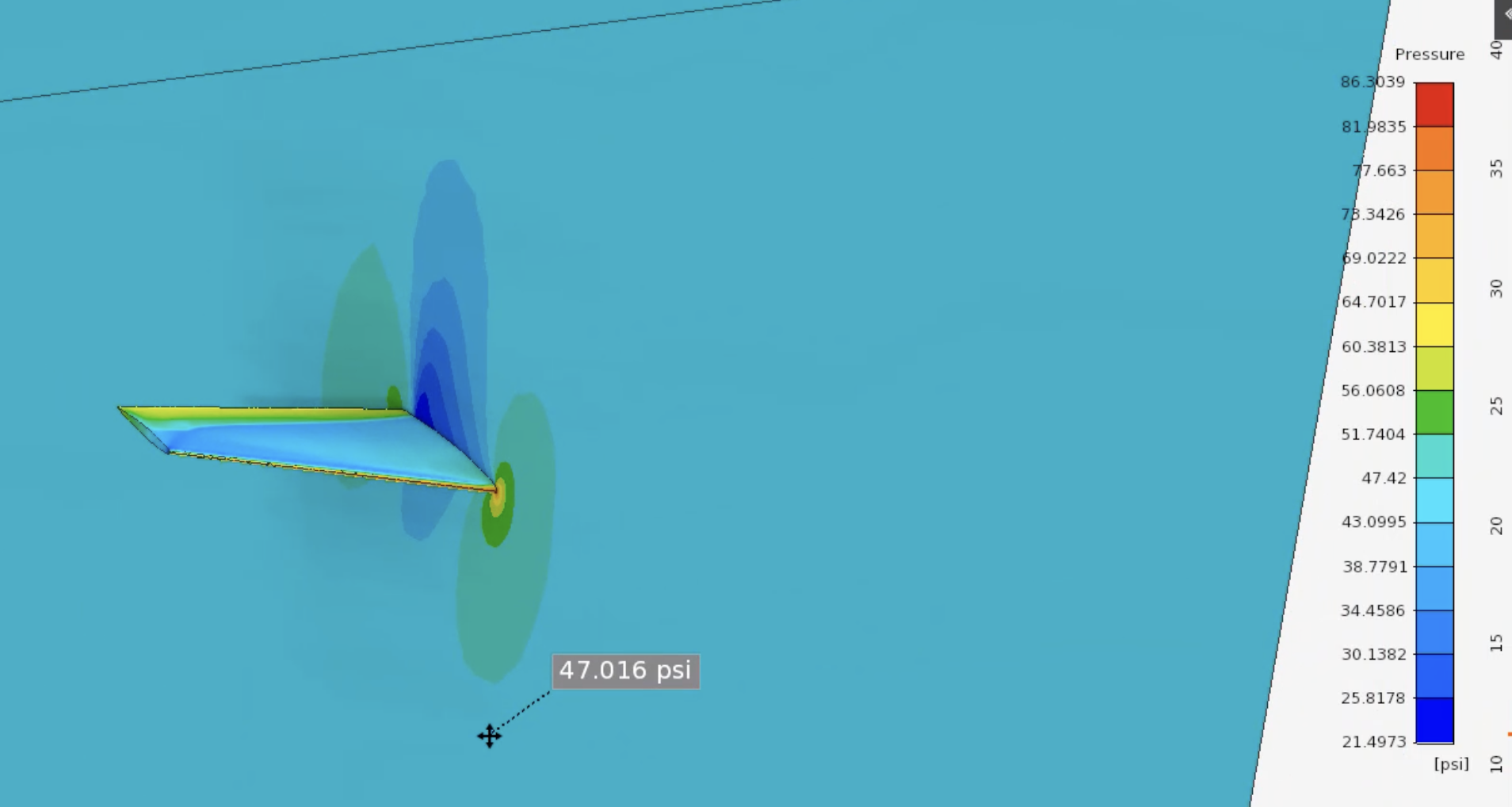

- Surface/near-field pressure distribution shows expected strong gradients in transonic regime.

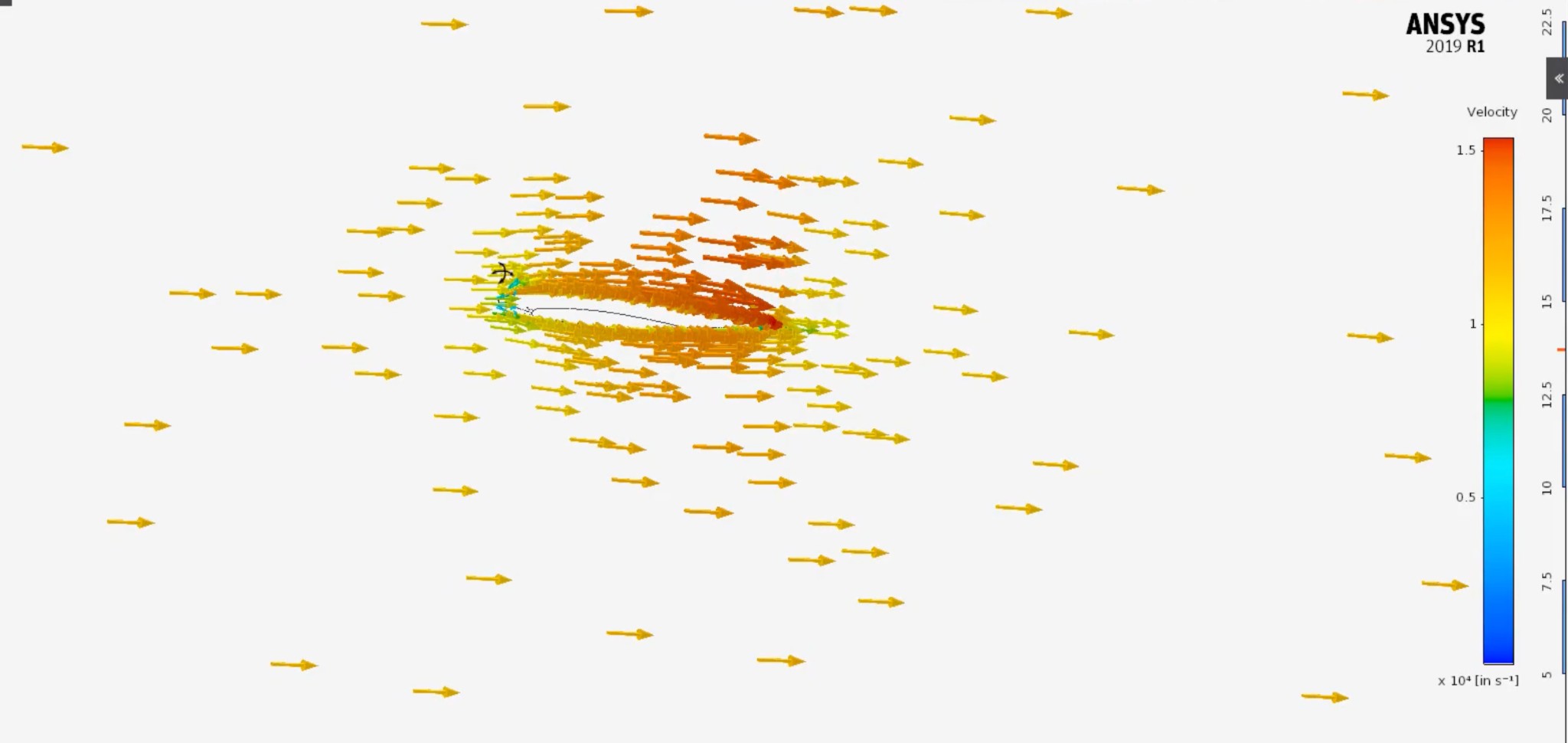

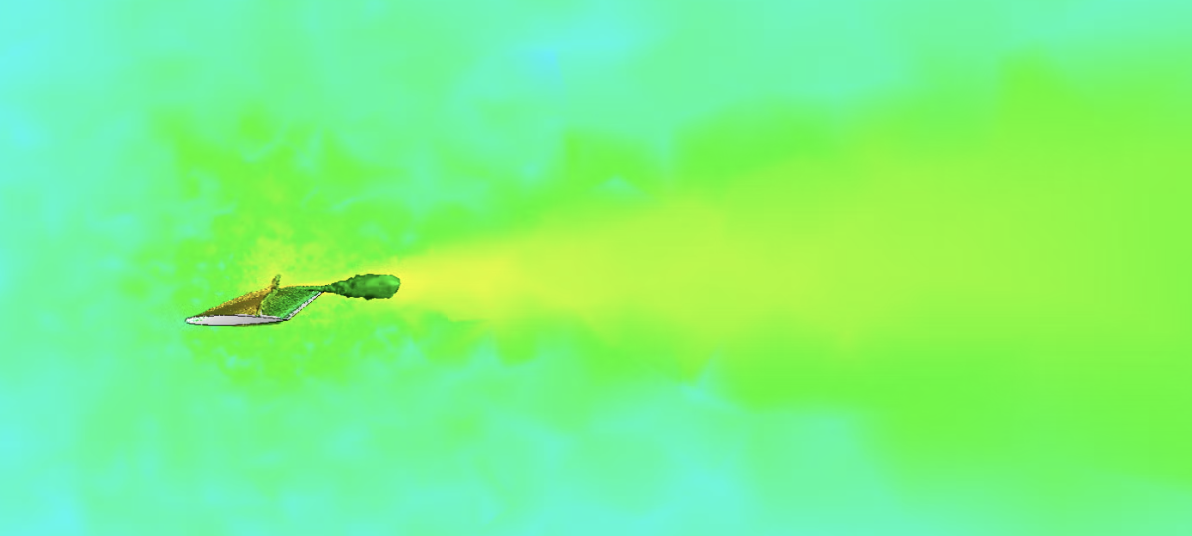

- Velocity vectors and wake visuals highlight flow reorganization downstream of wing.
- Symmetry-plane style contour behavior follows known ONERA M6 trend patterns used in tutorial validation discussions.
- Output set is suitable for quick A/B comparison after mesh or model refinements.
Validation and reproducibility notes

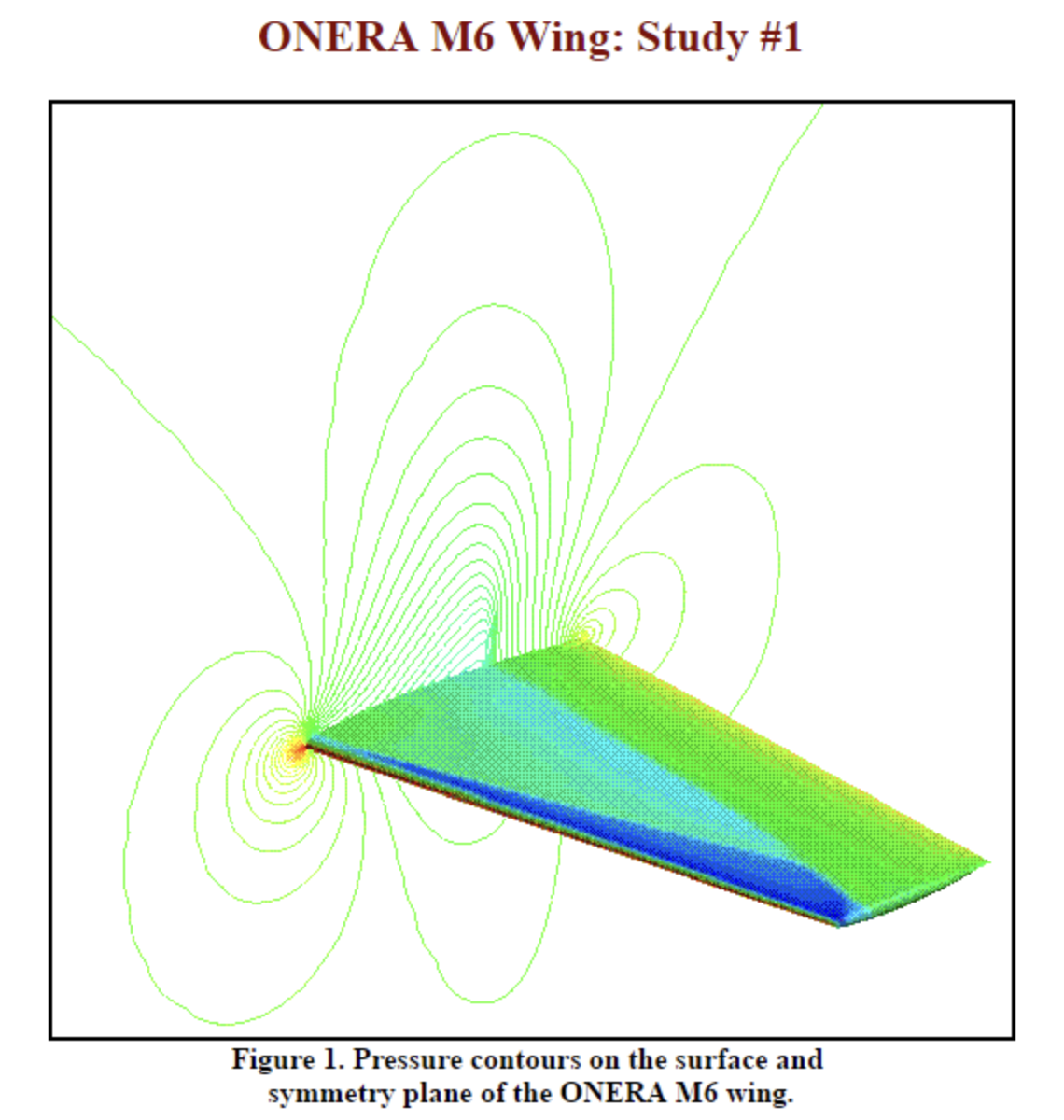

- Reference comparison is based on published ONERA M6 benchmark context in the tutorial resources.
- Any mismatch is interpreted with attention to mesh resolution and boundary-layer detail.
- Reporting package is organized so reruns can be compared without changing visualization framing.
Reference links
- Ansys Innovation Space knowledge post: Discovery AIM tutorial – Transonic Flow over a Wing
- Ansys Innovation course page: 3D Transonic Flow Over a Wing
